Manifolds and Vacuum Fittings for 2009 Jeep Commander
No.
Part # / Description / Price
Price
1
Exhaust Manifold Gasket, Left Side
Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: Left Side.
MSRP $40.75
$29.40
MSRP $40.75
$29.40
1
Exhaust Manifold Gasket, Right Side Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: Right Side. NOT Included With Long Block Engine Install Kit.
MSRP $40.75
$29.40
MSRP $40.75
$29.40
2
Exhaust Manifold, Left Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
2
Exhaust Manifold, Right Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
3
Exhaust Manifold Bolt Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES.
Description: [M8x1.25x46.0] Bolts are sold individually; not sold as a set, picture is for reference only.
MSRP $7.80
$5.51
MSRP $7.80
$5.51
4
Hex Flange Lock Nut, Mounting Right Side Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE. ALL 4.7L V8 ENGINES. ALL V6 ENGINES.
MSRP $7.80
$5.51
MSRP $7.80
$5.51
5
Exhaust Manifold Shield Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: Use Up To 06/04/2018. Right And Left Side. Gasoline Engine Manifold Only.
MSRP $29.35
$21.30
MSRP $29.35
$21.30
6
Nut, Hex Flange Lock Mopar
Mopar Description: Front Exhaust Pipe To Exhaust Manifold. M14x1.50. M10x1.50.
MSRP $6.75
$4.90
MSRP $6.75
$4.90
7
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: M8x1.25xm6x1.00x73.00. Exhaust Manifold To Cylinder Head. Not sold a set; sold individually.
MSRP $17.15
$12.28
MSRP $17.15
$12.28

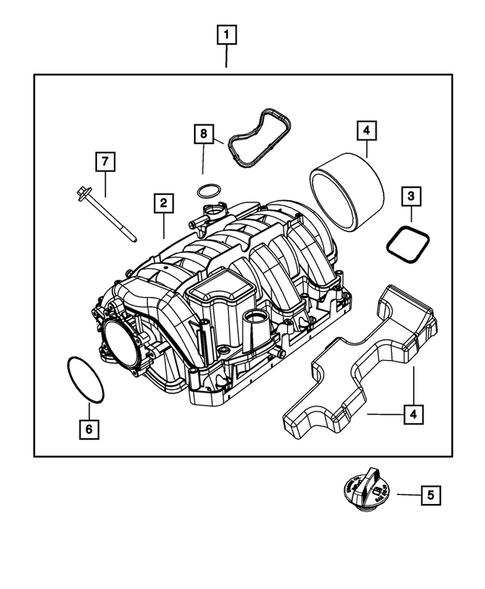

No.
Part # / Description / Price
Price
1
Intake Manifold Kit Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: Must now order 68189105AB. Mopar recommends replacing bolts (10) 6509246AA, foam pad 53013981AD and foam pad 53013735AB due to the manifold design change.
1
3
Manifold Gasket (1) Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: This is ONE single gasket.
MSRP $13.60
$9.86
MSRP $13.60
$9.86
4
Engine Pad Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: Engine Valley Cover. Rear Of Intake Manifold [Round].
MSRP $14.55
$10.47
MSRP $14.55
$10.47
4
Engine Pad Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: Round Pad In Rear Of Intake Manifold Is Serviced With Intake Manifold. Engine Valley. Round Pad In Rear Of Intake Manifold Serviced In Manifold Kit. Valley Cover.
MSRP $92.75
$61.61
MSRP $92.75
$61.61
5
Oil Filler Cap Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: With 5W20 Markings. Includes Oil Ring. Includes O-Ring.
MSRP $27.30
$19.60
MSRP $27.30
$19.60
6
Throttle Body Seal Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: Throttle body to intake seal.
MSRP $27.15
$19.48
MSRP $27.15
$19.48
7
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: 68190715AA,AB Supersede To 68190715AC Intake Manifold Kit. Item 3 Ball Stud & Item 4 Bolts Are No Longer Included & Must Be Ordered Seperate. Intake Manifold To Cylinder Heads. M6x1.00x81.00.
MSRP $9.40
$6.72
MSRP $9.40
$6.72
8
PCV Seal Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: NOT Included With Long Block Engine Install Kit. System. Large O Ring Small O Ring Is Serviced With PCV Valve Only.
MSRP $7.45
$5.38
MSRP $7.45
$5.38
8
PCV Seal Mopar
Mopar Notes: Engines: 5.7L V8 HEMI MDS VCT Engine. 5.7L V8 HEMI MDS VVT ENGINE.
Description: Rectangle. Rectangile. System. Square. Large, Small Seal Is Seviced With The Valve Only. NOT Included With Long Block Engine Install Kit or Upper Engine Gasket Kit, Must Order Separate. Small Seal Is Serviced With The Valve Only. On Manifold.
MSRP $24.35
$17.67
MSRP $24.35
$17.67
